More Information on IAE Ashbourne Galvanised Gates

In this short article, we are going to talk you through the benefits and specifications on Galvanised field gates, specifically IAE Ashbourne (boxed) gates.

What is the purpose of a field gate?

Field gates are mainly used to keep animals in and out of a certain area with the ability to be able to drive vehicles and machinery through the desired areas. They also provide the added benefit of ensuring security for properties.

Why choose a galvanised field gate?

A galvanised field gate is a type of metal gate that has been coated with a layer of zinc to protect it from corrosion and rust. A galvanised gate can have many advantages:

  • It is more durable and resistant to weather and wear then a wooden gate.
  • A metal gate requires little maintenance and has a long life.
  • It is stronger and sturdier than a wooden gate, providing enhanced security.
  • Galvanised gates often work out cheaper than wooden gates.

However, a galvanised gate also has disadvantages:

  • Due to its weight, a more solid structure is required to support it.
  • As the raw materials used are non-renewable and biodegradable, it is less environmentally friendly.

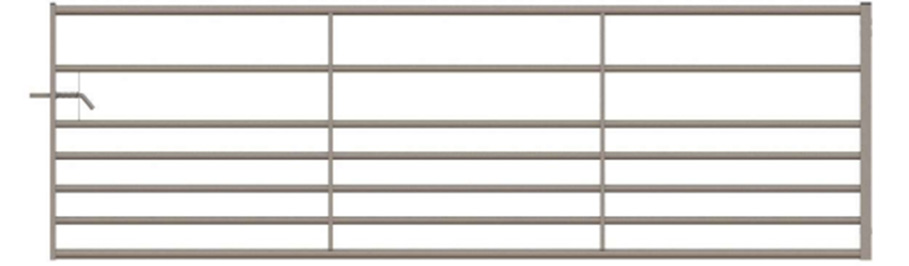

Ashbourne Product Overview

This product comes in sizing ranging from 610mm to 4880mm. Below provides a brief outline of the gate itself:

  • 1143mm high.
  • Box section RHS bracing for improved strength.
  • Spring loaded sliding bolt fastening.
  • 50mm x 50mm SHS sleeved hanging stile.

Ashbourne Product Specification

This 7-rail field gate is made from Mild Steel (Typical Steel Grades but not specified – S235, S275, E220) and hot dip galvanised to, BS EN 1461:2009.

Specification:

  • Square Hollow Section 50x50 Vertical Hanging End
  • Square Hollow Section 50x25 Vertical Slam End
  • Square Hollow Section 40X20 Vertical Support Braces
  • Circular Hollow Section 29 Dia. Intermediate Horizontal Rails
  • Circular Hollow Section 43 Dia. Top & Bottom Horizontal Rails

Additional Information: Supplied with (Not Assembled) 1 x Spring Loaded Sliding Bolt, 2 x M20x150 Adjustable Eyebolts for 20mm Pin.
